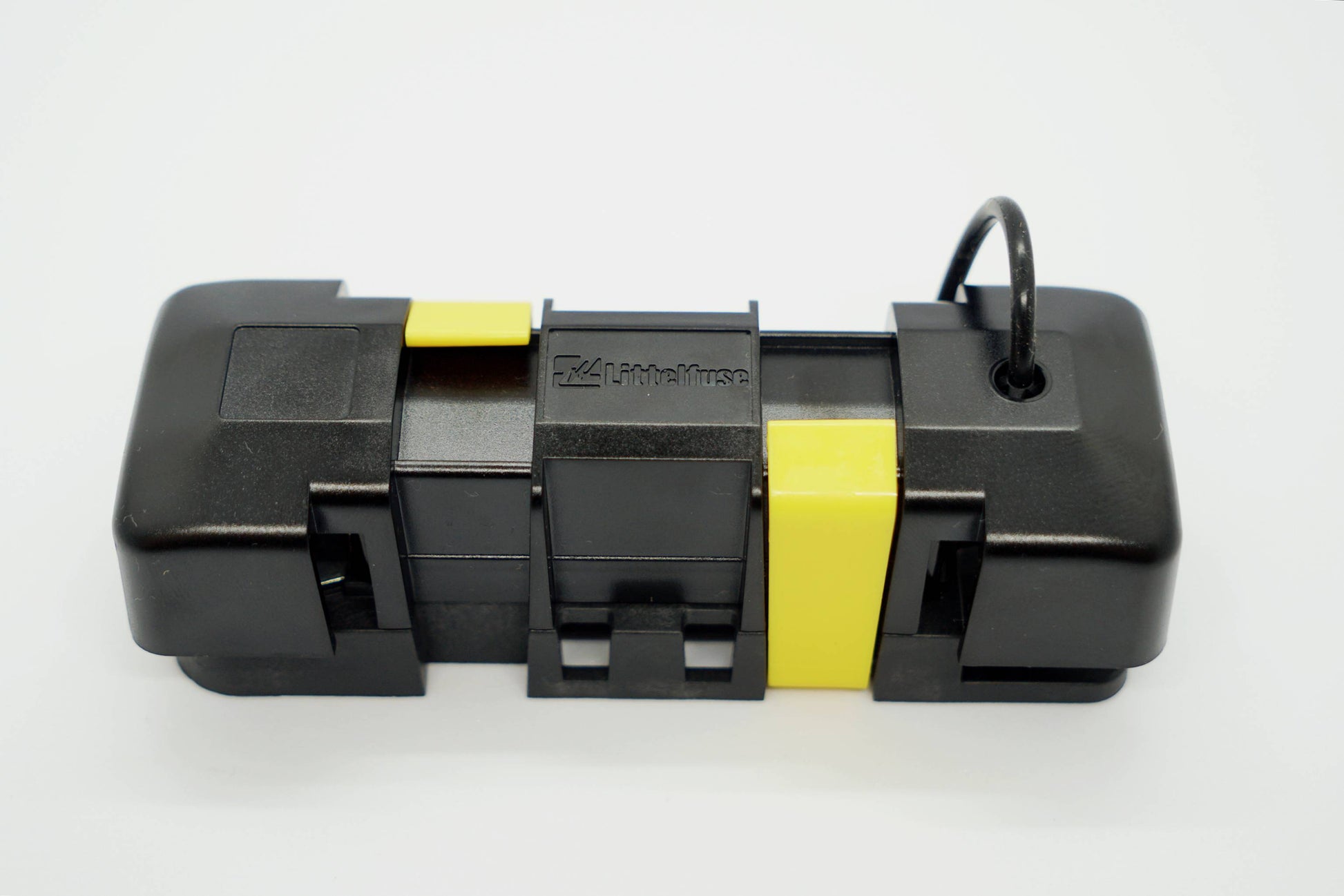

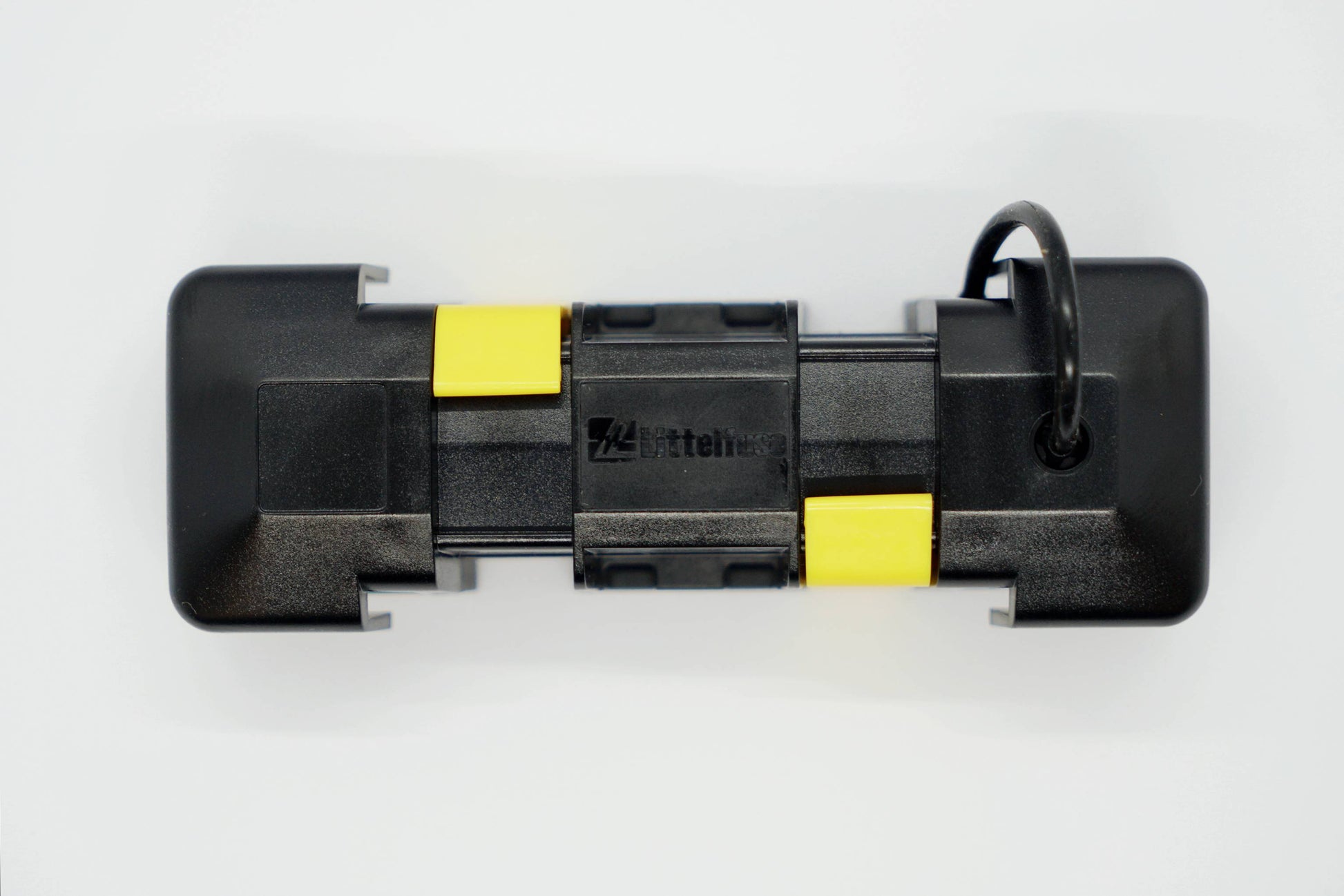

Littelfuse Sealed Megafuse Holder (IP66/P69K)

The Littelfuse Mega Fuse Holder is a sealed water-resistant fuse holder ideal solution for highcurrent, in-line, main or branch circuit protection (e.g. battery and alternator) in harsh or hazardous environments. The AssureLatch sealed positive latching technology is used to ensure a water-resistant and ignition protected fuse holder design.

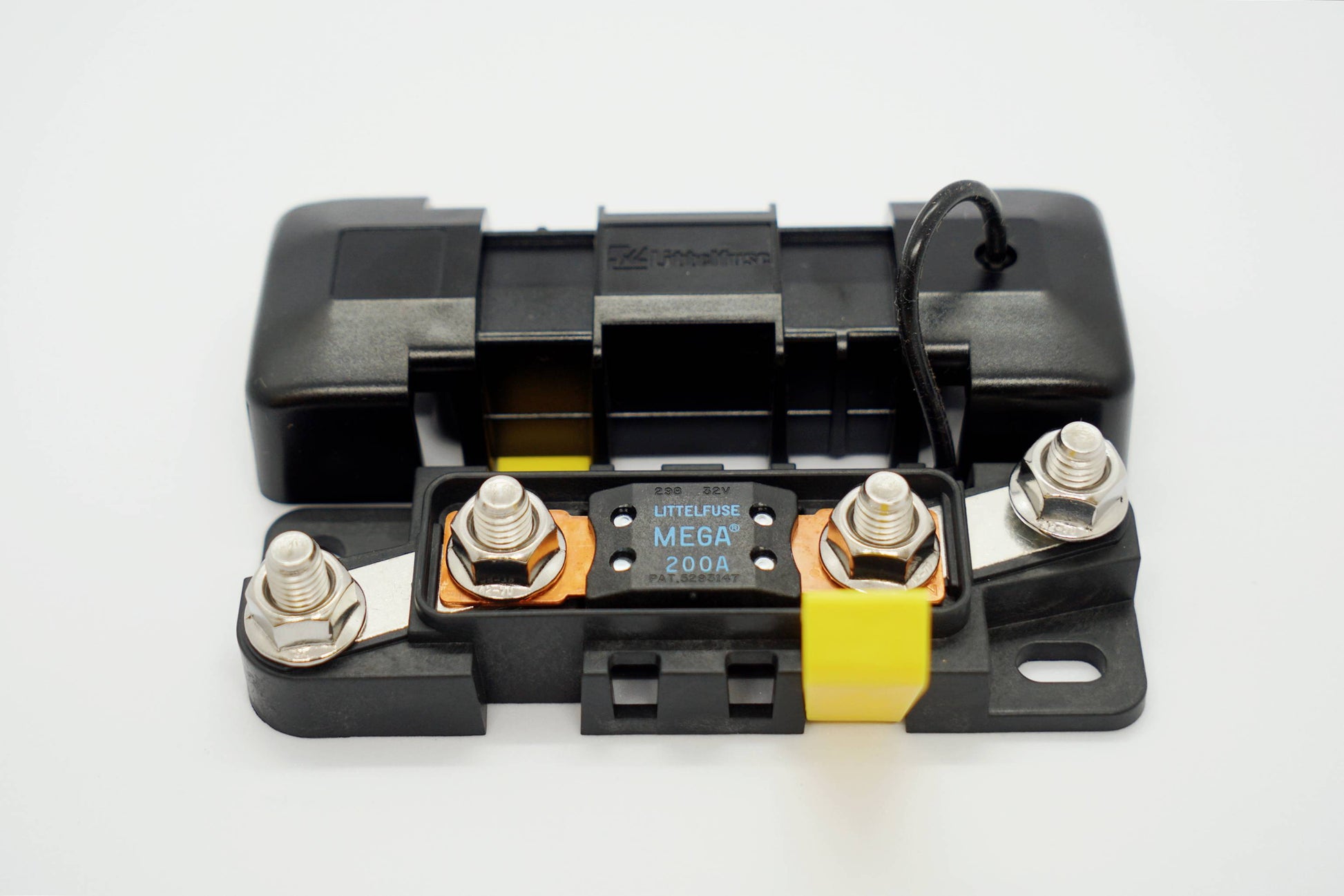

A waterproof fuse compartment inside the fuse holder assembly protects against fuse corrosion. The base features an M6 mounting hole and an M6 mounting slot for secure attachment, and it boasts a footprint that matches similar fuse holders, which makes switching from an unsealed to sealed fuse holder simple.

Features

• Sealed, waterproof fuse compartment protects against fuse corrosion and allows you to use dielectric spray on cable terminals without compromising the fuse connections
• With an IP66/P69K rating, the fuse holder forms a dust-tight enclosure that protects against water ingress from highpressure, high-temperature water jets
• Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads
• Stainless steel M8 hardware and tin-plated copper busbars offer long-term corrosion protection
• Shape-shut clips secure the cover in place
• Built-in tether keeps the cover connected to the base during servicing
