Littelfuse PDM - Fuse & Relay Box (12 Position)

Littelfuse PDM - Fuse & Relay Box (12 Position)

Regular price $50.00 AUD
Regular price Sale price $50.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Terminals, Seals & Plugs

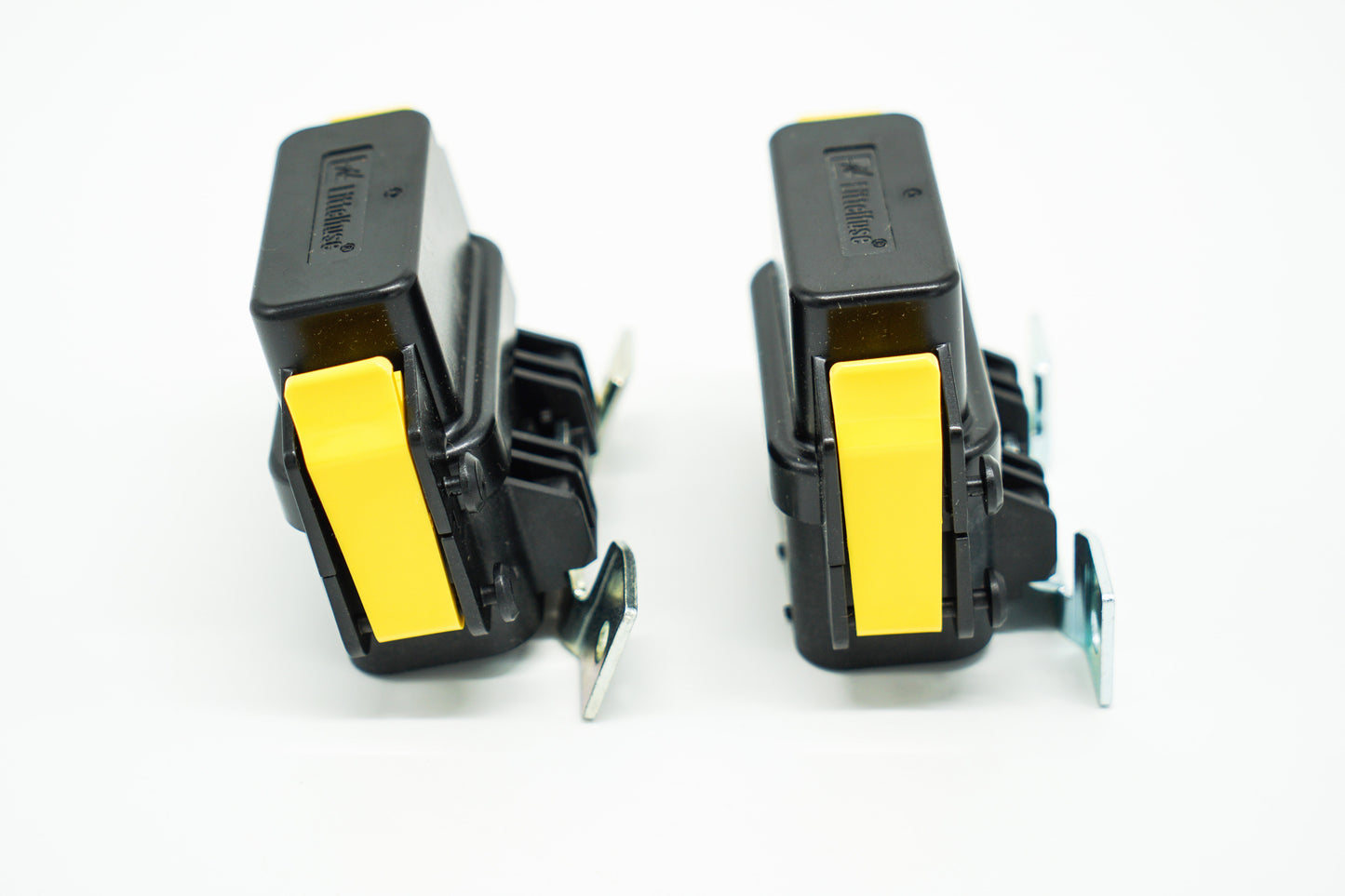

Mounting Bracket
Relays

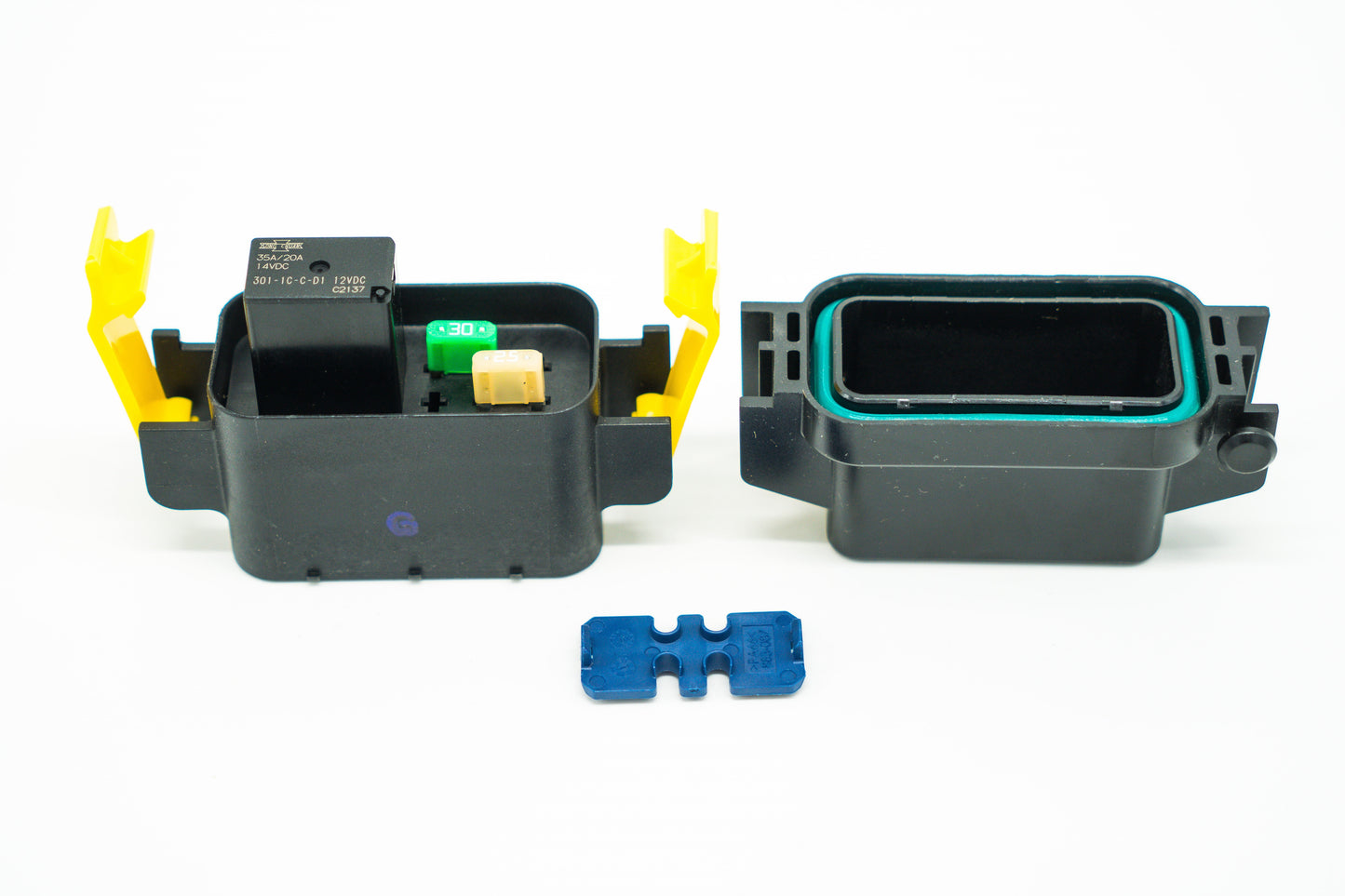

This Littelfuse PDM features 12 cavities and is the perfect fit for accessory circuits and overflow circuits from your main Power Distribution module. The unit can hold plug-in components including MINI fuses, MINI format circuit breakers, 4-pin single throw relays, and 5-pin double throw relays. Featuring an IP67/IP69K rating, this compact and durable unit allows the user to customize their own circuitry.

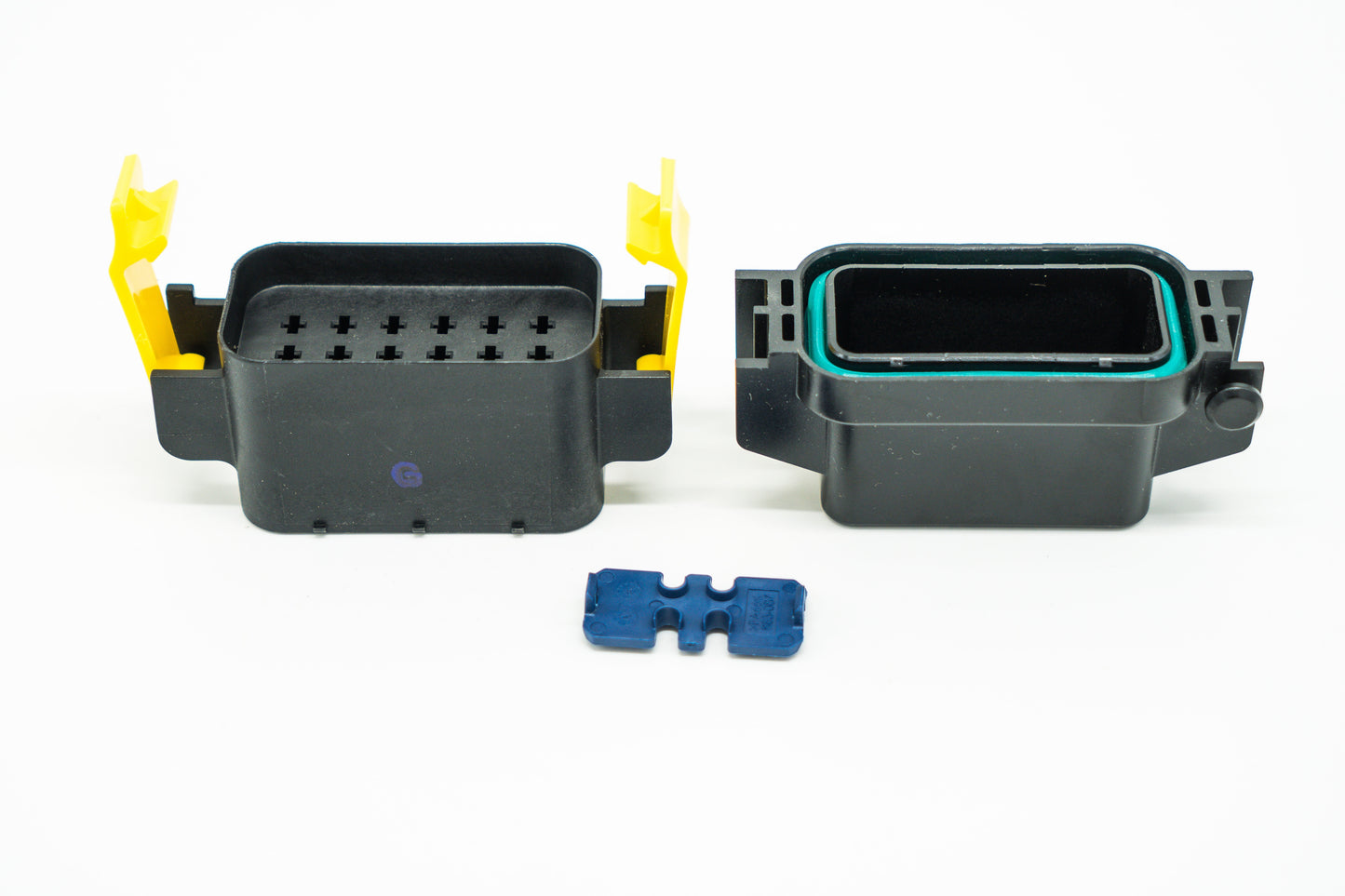

This unit utilises direct wire-to-component connections which are crimped to the wire harness with grommets to seal the bottom of the module.

Specifications

Max Fuse Rating 30A per circuit
Max Continuous Current 130A
Number of Cavities 12
Recommended Mounting M6 bolt and lock washer
Temperature Range -40 °C to +105 °C
Ingress Protection Rating IP67
Dimensions 83.2x69.6x43.6 mm
Wire Sizes 22 AWG - 13 AWG (0.35-2.50 mm²)
Mating Terminals & Seals TE Connectivity MCP Series
