Littelfuse Fuse Holder (JCase & Mini Fuse)
Littelfuse Fuse Holder (JCase & Mini Fuse)
Regular price
$80.00 AUD
Regular price
Sale price
$80.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

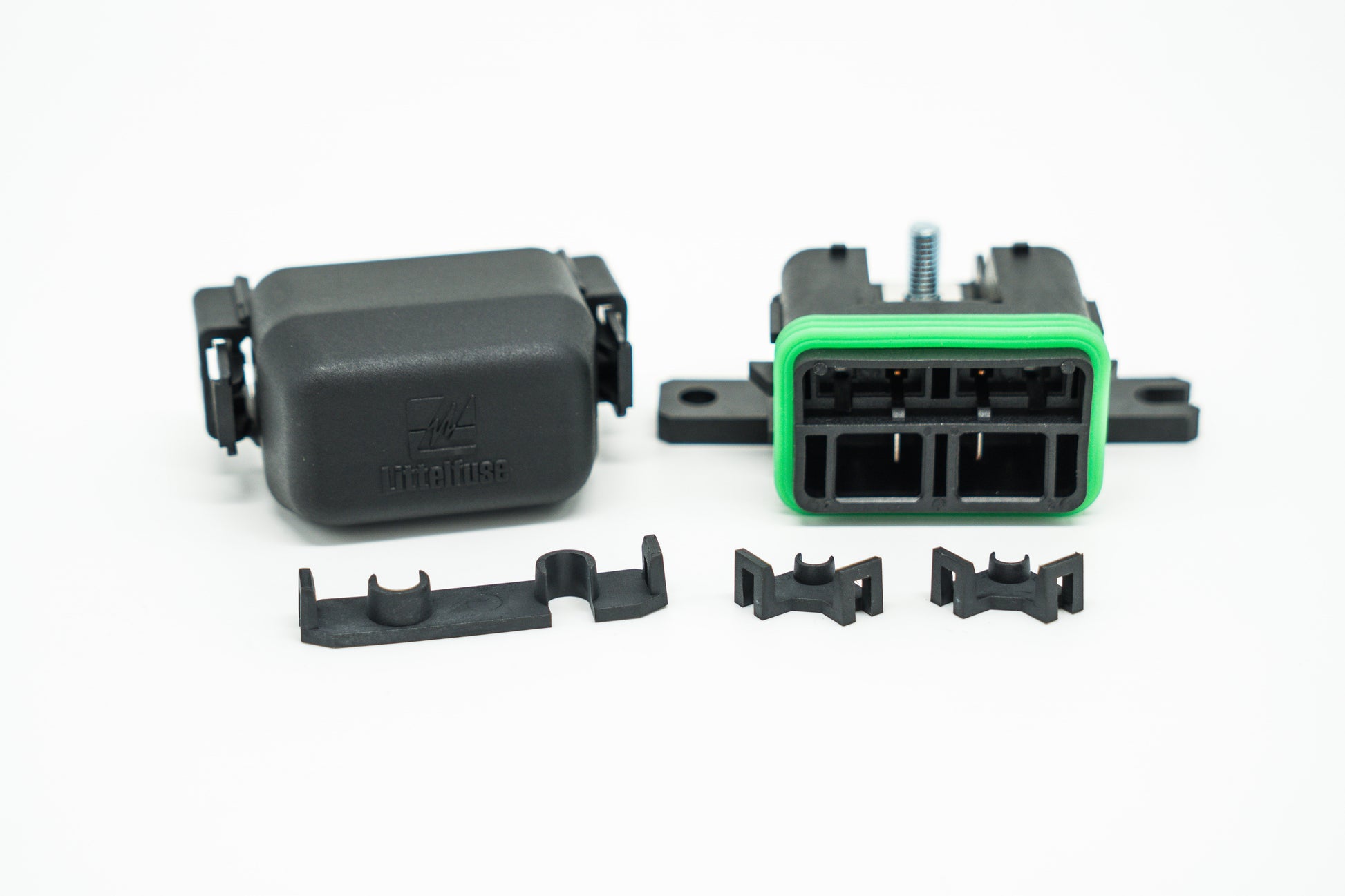

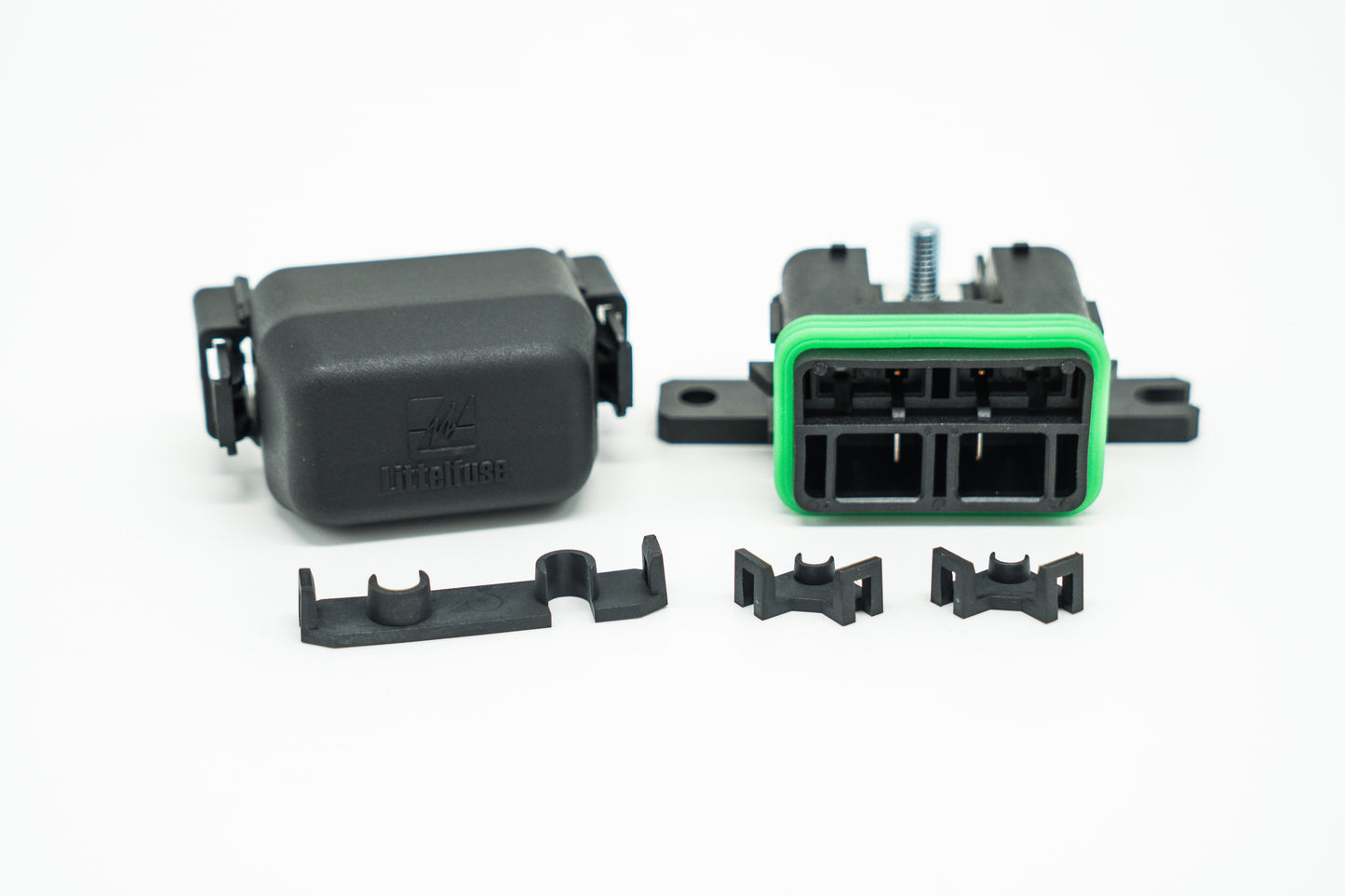

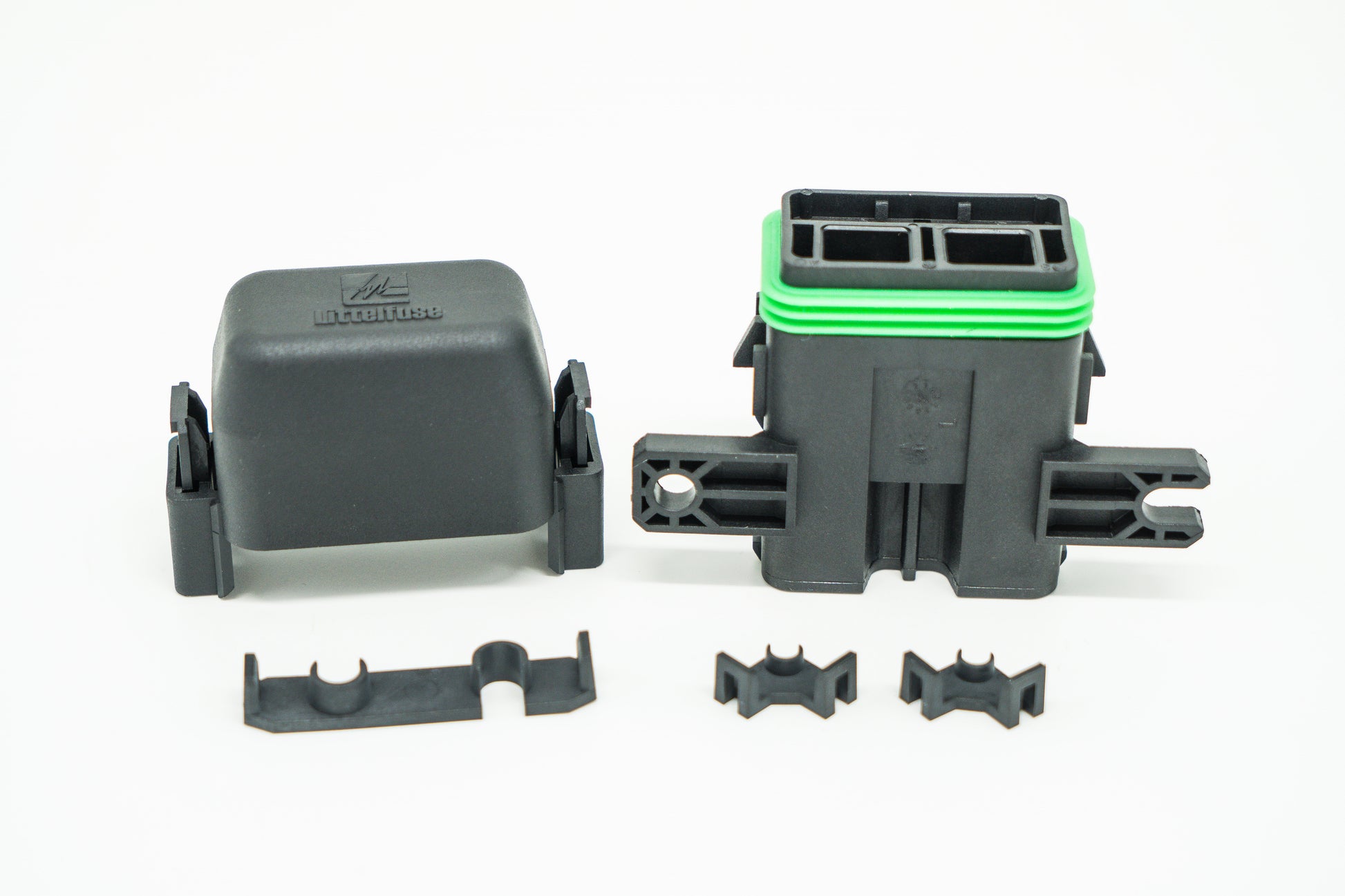

This Littelfuse fuse holder/box accomodates two mini fuses and two JCase fuses. The four fuses are bussed internally to the main input power stud which allows makes installation a breeze. The use of the two fuse types provides an amperage range of 2A to 60A in a compact package and being IP67 rated enables it to be used in heavy duty environments. TPAs are included to provide secondary locking of each wire terminal.
Specifications
| Max Voltage | 30V DC |
| Max Input Current | 23°C at 100A, 85°C at 70A |
| Number of Cavities | 4 |
| Input Stud Sizing |
M6x1.0 bolt and washer (Sold seperately) |
| Temperature Range | -40 °C to +85 °C |
| Ingress Protection Rating | IP67 |
| Dimensions | 86.50 x 77.25 x 33.6 mm |
| Mating Terminals & Seals |
JCASE®: Delphi Ducon 6.3 Sealed Male MINI®: Delphi Metri-Pack 280 Sealed Female |
