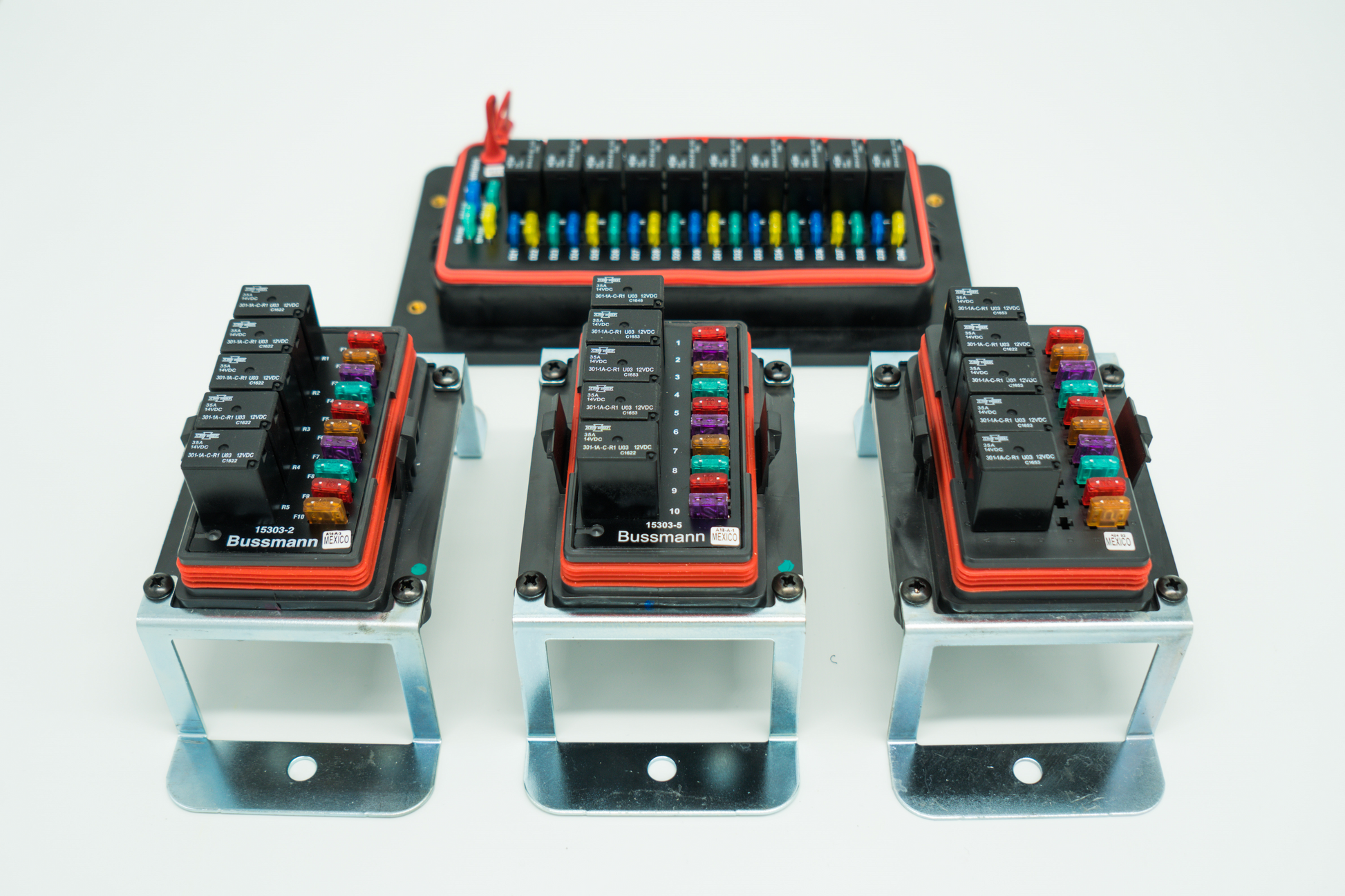

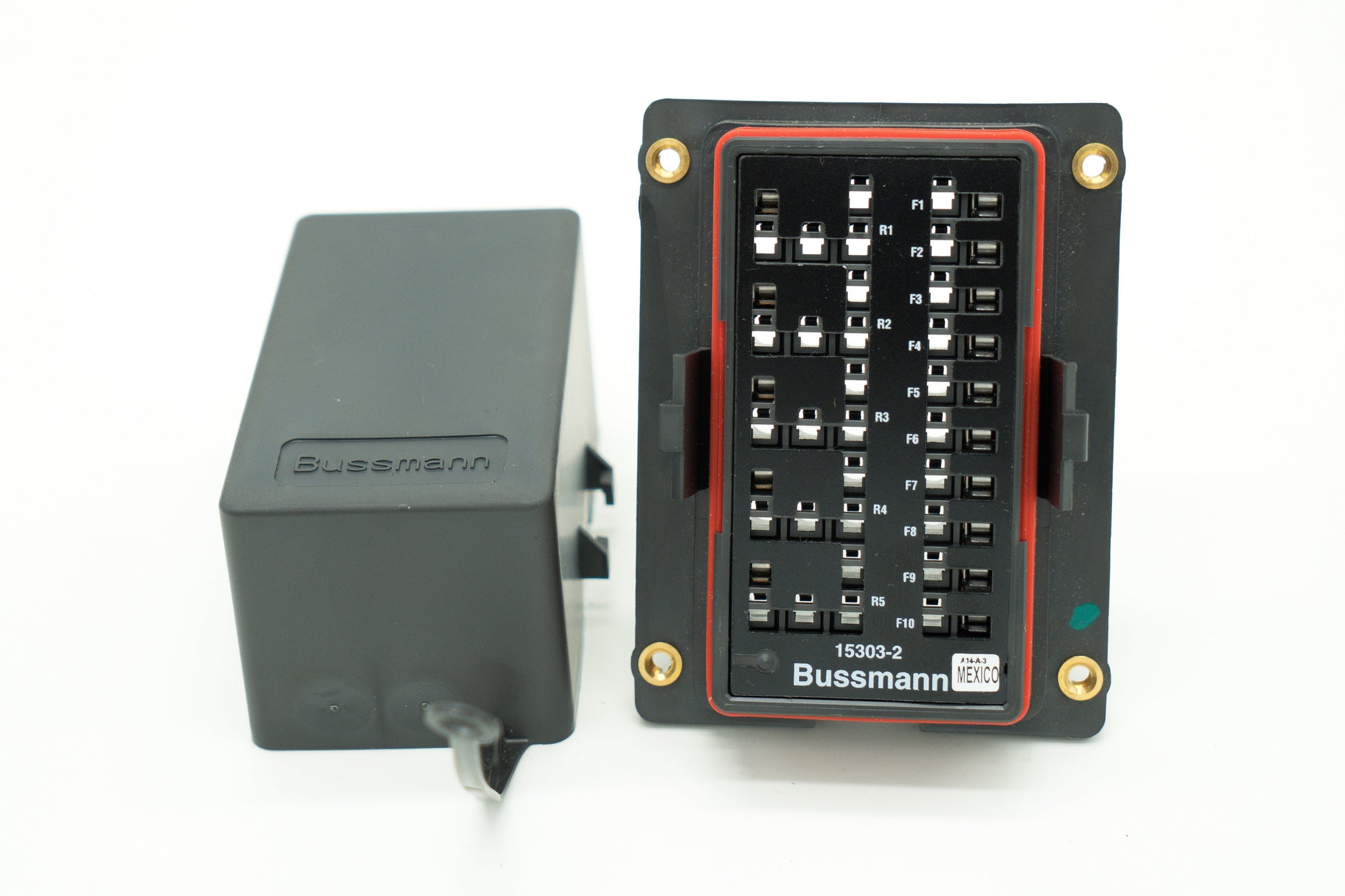

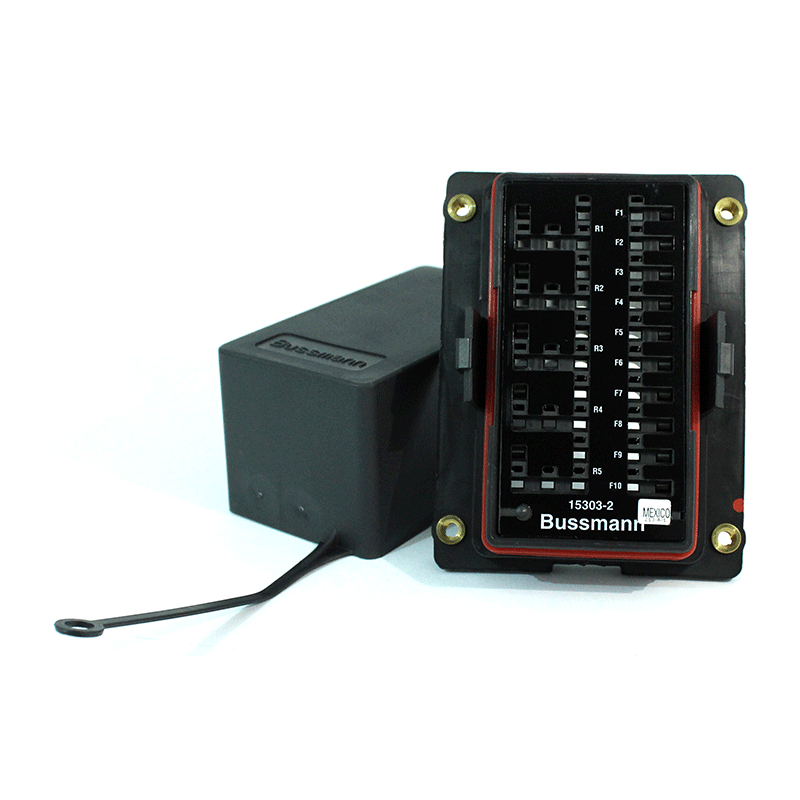

This compact fuse & relay box provides efficient power distribution in a rugged, weather tight enclosure (IP66 rated*). With provision for up to 5 relays and 10 fuses, these fuse & relay boxes are versatile enough to provide power to your race car or your 4x4 ancillaries & accessories.
*Note IP66 rating only when cover, cable seals, and cavity plugs are installed.
Note:
- Internal bussing on relay (pin 86) only.
- Terminal, Seals & Plugs kit includes 40 Seals & Terminals and 15 cavity plugs.
- Max input of 80A & output of 30A per terminal.
- 5-Pin changeover relay option is only suitable for use when power is provided to the relay buss stud due to orientation of diode.
See here for the Bussmann Fuse Box with provision for up to 10 relays or 30 fuses or any combination inbetween.
